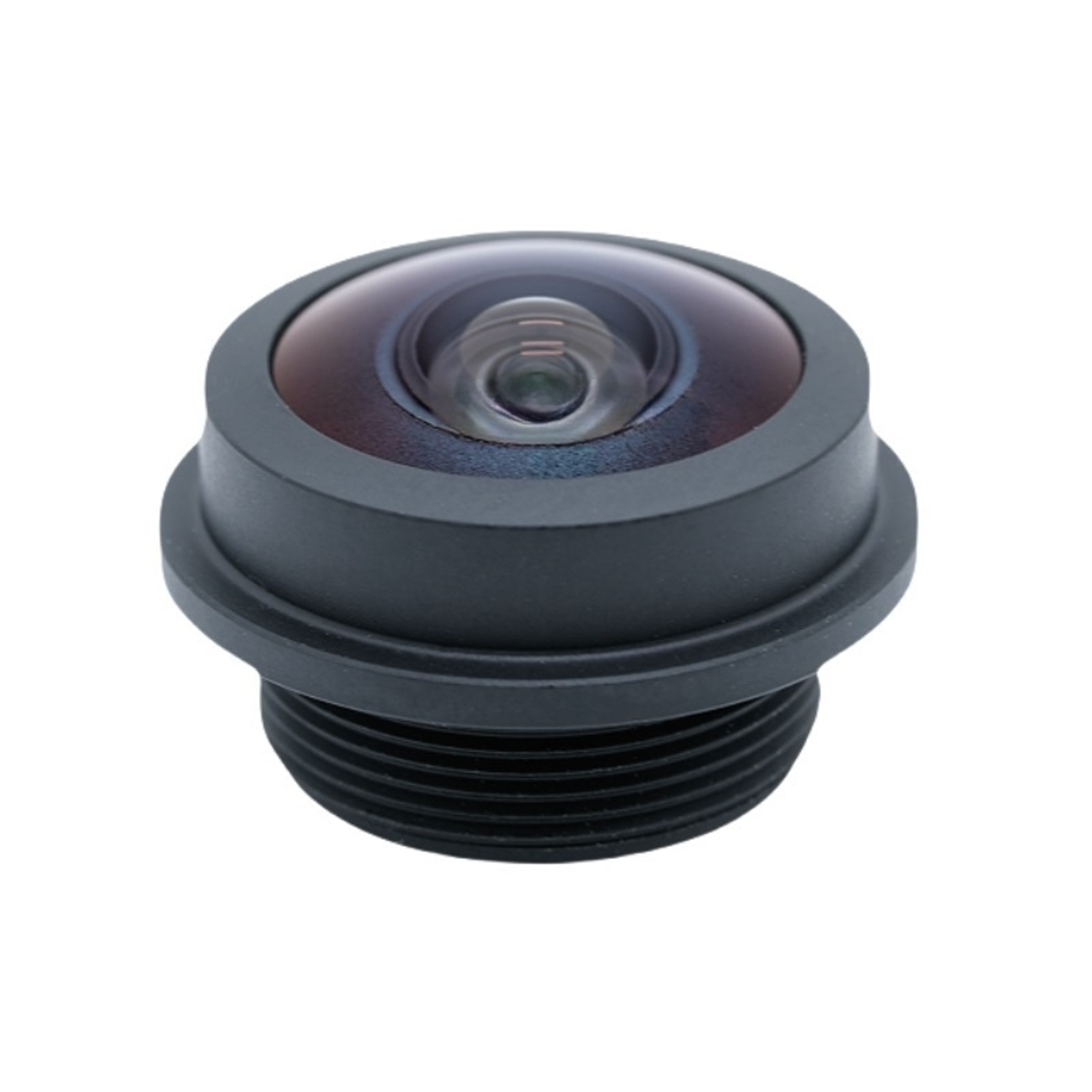

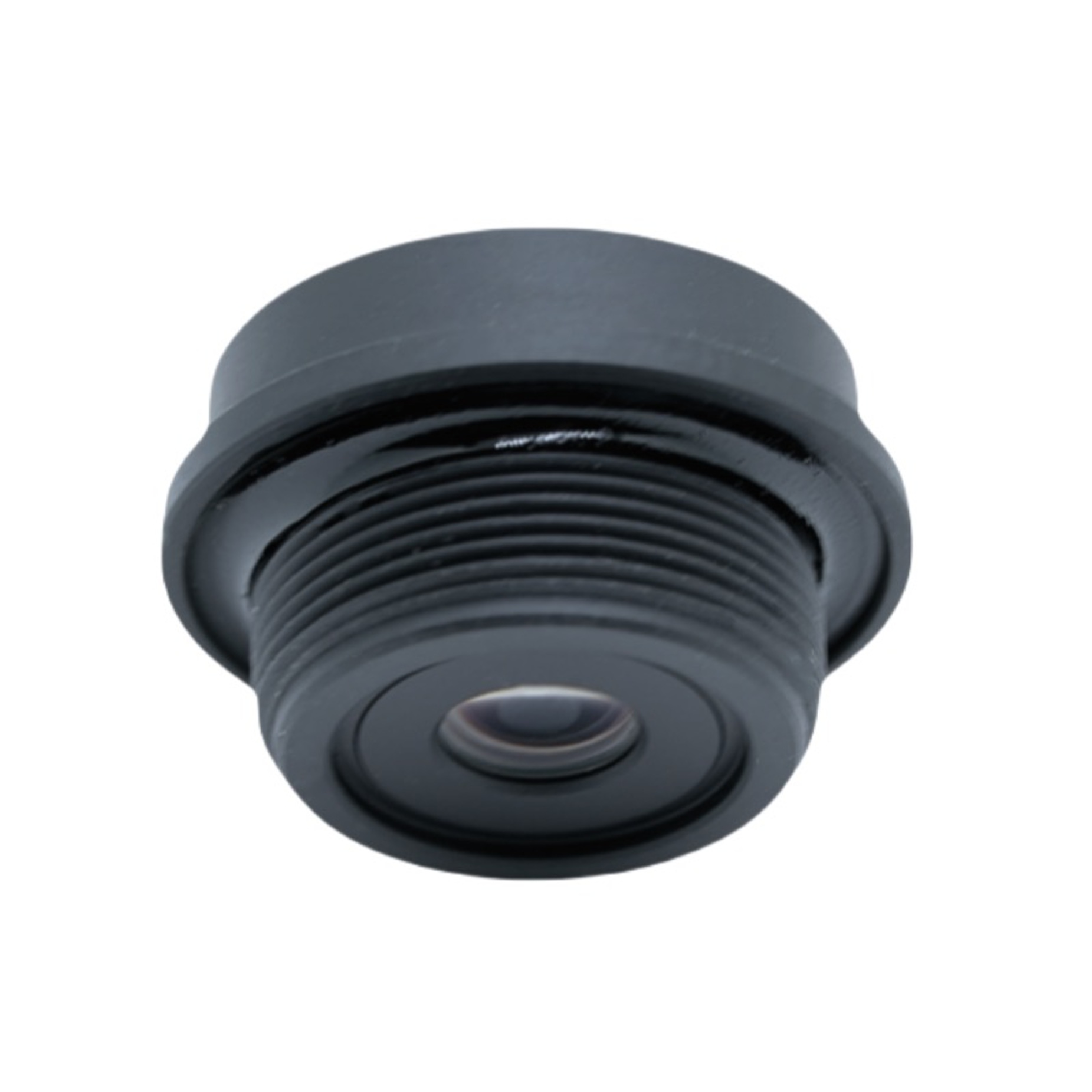

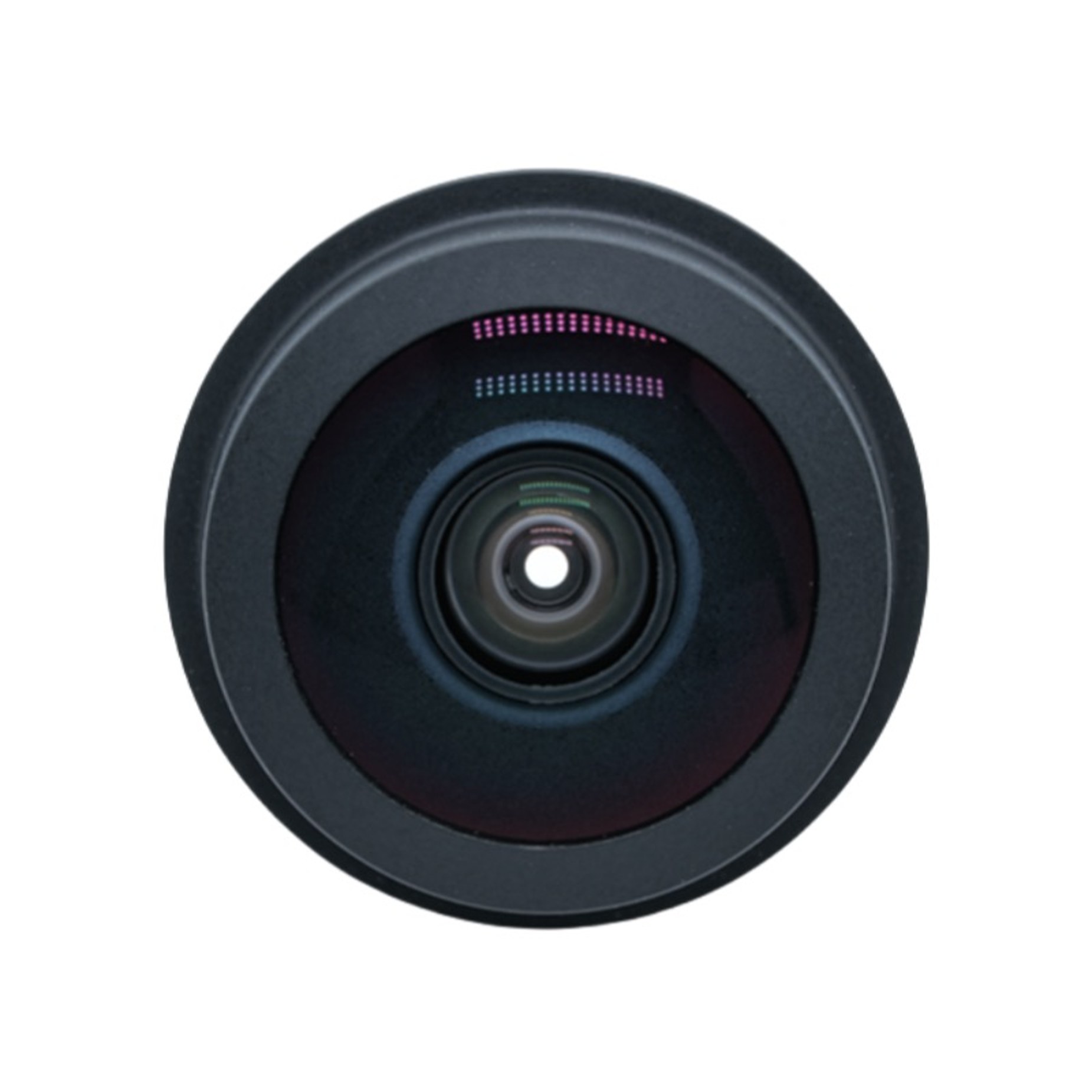

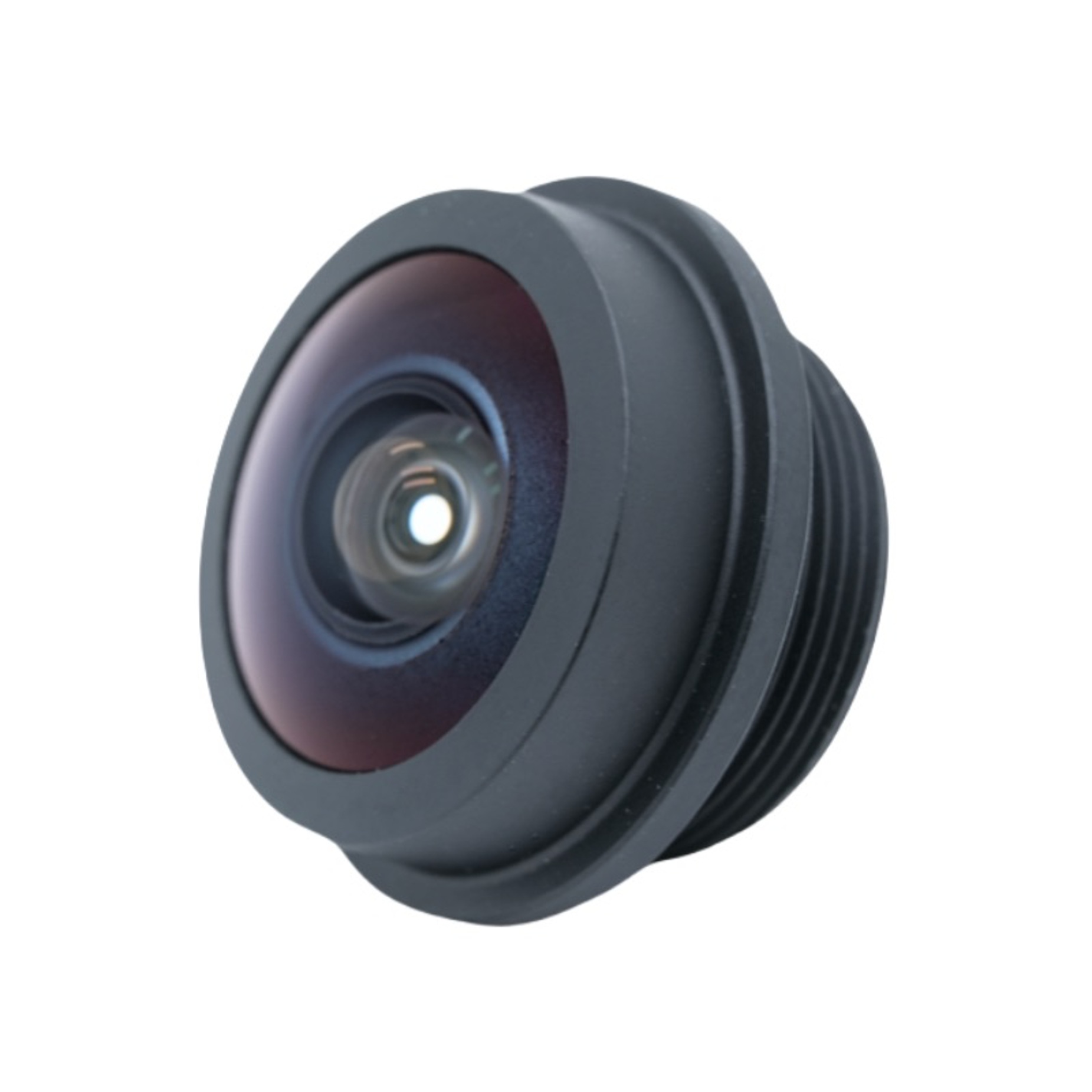

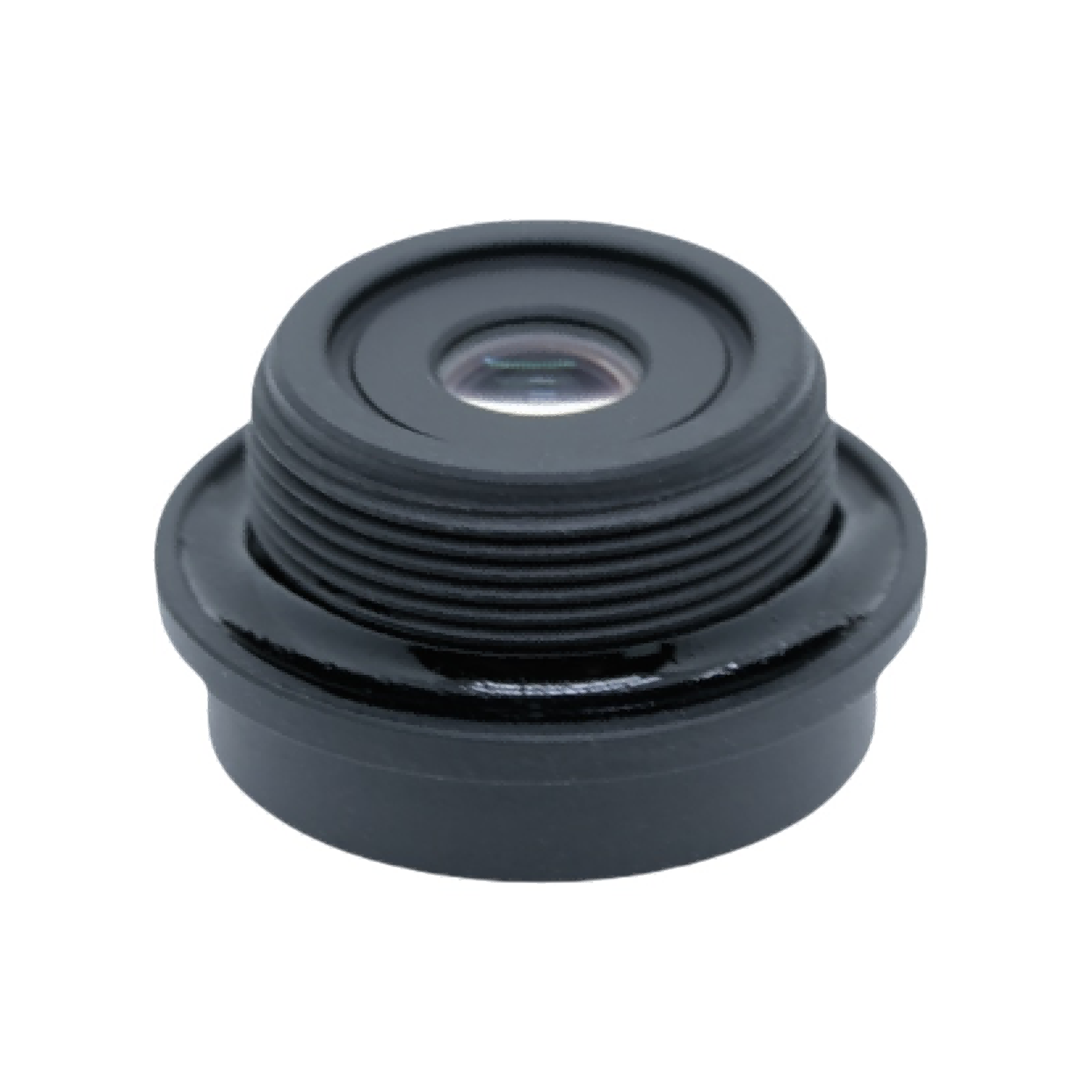

                                    Ống kính mắt cá 1,8mm
                                    • Ống kính mắt cá 1,8mmỐng kính mắt cá 1,8mm
                                    • Ống kính mắt cá 1,8mmỐng kính mắt cá 1,8mm
                                    • Ống kính mắt cá 1,8mmỐng kính mắt cá 1,8mm
                                    • Ống kính mắt cá 1,8mmỐng kính mắt cá 1,8mm
                                    • Ống kính mắt cá 1,8mmỐng kính mắt cá 1,8mm

                                    Ống kính mắt cá 1,8mm

                                      Được sản xuất bởi Công nghệ quang học BOSHI, ống kính ngàm M12 góc siêu rộng hiệu suất cao này được tối ưu hóa cho cảm biến 1/2,9 inch, được trang bị tiêu cự 1,8 mm và khẩu độ F2.0 để đạt được khả năng chụp cảnh lớn vượt trội. Nó cung cấp phạm vi xem chéo 208 độ để nhận ra hình ảnh toàn cảnh hoàn chỉnh mà không có vùng chết thị giác. Kích thước cơ học nhỏ gọn cho phép dễ dàng nhúng vào các mô-đun máy ảnh dạng nhỏ. Mỗi thiết bị đều trải qua quá trình kiểm tra quang học nghiêm ngặt để đạt được độ chiếu sáng tương đối cao ổn định và độ méo f theta có thể quản lý được. Công nghệ quang học BOSHI thúc đẩy quy trình sản xuất quang học hoàn thiện để duy trì tính nhất quán đáng tin cậy của sản phẩm cho nhu cầu đặt hàng lớn của các dự án quang học thị giác máy và giám sát toàn cảnh.

                                      Gửi yêu cầu

                                      Mô tả Sản phẩm

                                      Product Brief

                                      Manufactured by BOSHI Optical Technology, this high-performance ultra wide angle M12 mount lens is optimised for the 1/2.9 inch sensor, equipped with 1.8mm focal length and F2.0 aperture to realise extraordinary large scene capturing capacity. It provides 208 degree diagonal viewing range to realise complete panoramic imaging without visual dead zones. Compact mechanical size allows easy embedding into small-form camera modules. Every unit undergoes strict optical testing to realise steady high relative illumination and manageable f-theta distortion. BOSHI Optical Technology leverages mature optical manufacturing workflow to maintain reliable product consistency for mass order demands of panoramic monitoring and machine vision optics projects.


                                      Product Detailed Description

                                      1. Parameter

                                      Focal length reaches 1.8mm with tolerance of plus and minus 5 percent. This 1.8mm focal length supports ultra-large viewing angle and matches the specification requirement of 1/2.9 inch sensor.

                                      Working aperture is F2.0 with tolerance of plus and minus 5 percent. This F2.0 aperture ensures adequate light input for imaging under low-light surroundings.

                                      Total track length is 13.26mm with plus and minus 0.3mm tolerance. Back focal length maintains 3.2mm for correct sensor focusing position.

                                      Field of view specification includes 208 degree diagonal angle, 173 degree horizontal angle and 93 degree vertical angle. This 208 degree fisheye viewing capacity covers extremely broad scene range.

                                      F-theta distortion value is controlled at minus 8.0 percent. Low f-theta distortion reduces image deformation for panoramic output.

                                      Relative illumination hits 50.0 percent. High relative illumination effectively mitigates dark corner phenomenon at image edges.

                                      Chief ray angle keeps below 18.0 degree. This index optimises light incident condition for the 1/2.9 inch sensor.

                                      Adopts standard M12 mount lens interface with thread specification M12 multiplied by P0.5. It supports quick assembly and replacement for standard camera hardware.

                                      NO. ITEM CONTENT
                                      1 TTL 13.26±0.3
                                      2 EFL 1.8±5%
                                      3 F/NO 2.0±5%
                                      4 BFL 3.2
                                      5 CONSTRUCTION 4G2P
                                      6 MAX IMAGE CIRCLE Φ5.4mm
                                      7 For Sensor 1/2.9" CG2053
                                      8 Field of View - Diagonal 208°
                                      9 Field of View - Horizontal 173°
                                      10 Field of View - Vertical 93°
                                      11 F-theta Distortion -8.0%
                                      12 Relative Illumination 50.0%
                                      13 CRA < 18.0°
                                      14 Mount M12*P0.5

                                      2. Performance Advantages

                                      Delivers 208 degree fisheye ultra wide angle coverage. Single lens can capture huge area scene so users cut hardware quantity and overall project cost for panoramic monitoring.

                                      F2.0 aperture brings excellent light gathering capability. It improves image brightness in dim environment and lowers requirement for auxiliary fill-in light source.

                                      Well tuned chief ray angle fits CMOS receiving feature. It works together with high relative illumination to keep uniform brightness from image centre to image edge.

                                      Controlled low f-theta distortion balances wide-angle characteristic and image reality. It avoids severe image warping which troubles ordinary fisheye products.

                                      Standard M12 mount lens design brings strong compatibility. It can fit most commercial miniature camera modules in machine vision optics industry.

                                      Optimised mechanical dimension supports miniaturised product design. It saves internal space for compact surveillance device, smart terminal and robotic equipment.

                                      As products from BOSHI Optical Technology, each lens passes multi-procedure inspection. Stable tolerance of 1.8mm focal length and F2.0 aperture guarantees consistent optical performance during mass production delivery.

                                      1.8mm Fisheye Lens

                                      3. Application Field

                                      Panoramic monitoring for security surveillance. This ultra wide angle lens serves indoor anti-theft cameras, lobby monitoring devices and doorway panoramic cameras. The 208 degree fisheye view covers full room space and removes monitoring blind spots with the cooperation of 1/2.9 inch sensor.

                                      Automotive peripheral auxiliary vision. The M12 mount lens is integrated into vehicle surround view camera systems. It captures full surrounding information around automobile and assists driver for safe reversing and parking operation.

                                      Industrial machine vision optics scenarios. Factories deploy this lens for large area station inspection, peripheral safety detection and wide-range site snapshot. Low f-theta distortion helps machine algorithm process visual data accurately.

                                      Smart home visual hardware. Compact camera modules for home security adopt this product. It completes full-angle household monitoring and supports remote real-time viewing with high relative illumination to obtain clear footage day and night.

                                      Robot environmental perception equipment. Service robot and inspection robot equip this ultra wide angle component. It acquires broad environmental information for obstacle identification and path planning.

                                      Miniature IoT camera modules. Various internet-of-things visual terminals utilise this lens. 1.8mm focal length and F2.0 aperture satisfy the demand for wide scene recording of small sized IoT cameras.
